    Jellyfin Forum Off Topic Self-hosting & Homelabs Budget Server

    Pages (2): 1 2 Next »


    • 0 Vote(s) - 0 Average

    Budget Server

    Simzy
    Offline

    Junior Member

    Posts: 4
    Threads: 1
    Joined: 2024 May
    Reputation: 0
    #1
    2024-05-28, 03:43 PM
    I was wondering if I could get some opinions on this server that is for a personal server with no more than 10 people watching at once https://uk.pcpartpicker.com/list/ZKsTh3, 1080p is what I am aiming for because no one who would be watching it would be watching 4k anyway.
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #2
    2024-05-28, 04:03 PM (This post was last modified: 2024-05-28, 04:03 PM by TheDreadPirate.)
    If you're not going to put in a dedicated GPU, I STRONGLY suggest you use an Intel CPU. Intel Quick Sync, even on their iGPUs, are light years ahead of AMD's.

    At least 8th Gen Intel.
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    Simzy
    Offline

    Junior Member

    Posts: 4
    Threads: 1
    Joined: 2024 May
    Reputation: 0
    #3
    2024-05-28, 04:12 PM
    I was actually thinking of an Intel Arc GPU but I wasnt sure how they are doing with transcoding right now.
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #4
    2024-05-28, 04:22 PM (This post was last modified: 2024-05-28, 04:24 PM by TheDreadPirate. Edited 4 times in total.)
    Intel Arc GPUs are transcoding champs, IMO. The entire Arc lineup has the same encoding engine so getting the base A380 will get you the same transcoding performance as the top A770.

    Also, if you are going the Intel Arc route, you can stick with your motherboard choice. But consider spending 19 GBP more and get the Ryzen 5500 instead of the 3400G. You get 2 more cores and those cores are full Zen 3 cores instead of cut down Zen+ cores.
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    Simzy
    Offline

    Junior Member

    Posts: 4
    Threads: 1
    Joined: 2024 May
    Reputation: 0
    #5
    2024-05-28, 05:11 PM
    I did an updated list, the case is optional, mainly looking around for ones that can handle a lot of drives if needed https://uk.pcpartpicker.com/list/nM93pB
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #6
    2024-05-28, 05:17 PM (This post was last modified: 2024-05-28, 05:19 PM by TheDreadPirate. Edited 1 time in total.)

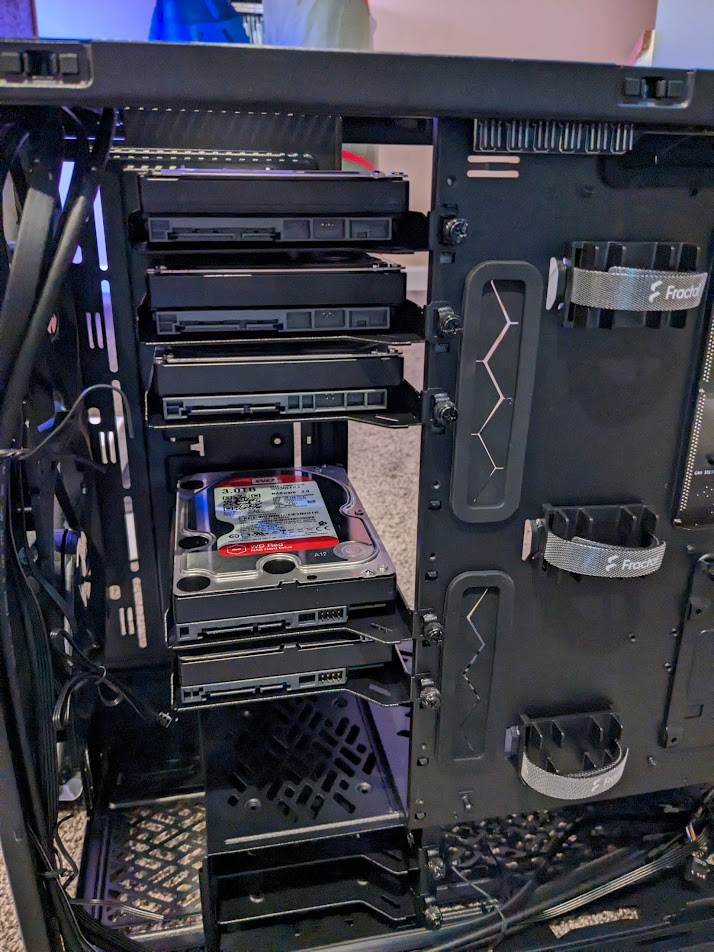

    I have the Fractal Meshify 2 and love it.  Roomy, has a bunch of drive slots, a bit pricey compared to your selection.



    Also consider getting a lower power PSU.  Over specing the PSU for a low power system means that you are always way outside of the PSUs efficiency range, which peaks around to 50%.

    Other than that, your part list looks good.
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    Simzy
    Offline

    Junior Member

    Posts: 4
    Threads: 1
    Joined: 2024 May
    Reputation: 0
    #7
    2024-05-28, 05:45 PM
    Lowering the PSU is something I was already considering, to something like a 500w which still gives me room for adding more drives without going over, the case is more a way of just having something that I could put into a cupboard and forget about unless I was adding or upgrading parts.
    bitmap
    Offline

    Community Moderator

    Posts: 821
    Threads: 9
    Joined: 2023 Jul
    Reputation: 27
    #8
    2024-05-28, 06:41 PM
    (2024-05-28, 05:17 PM)TheDreadPirate Wrote: I have the Fractal Meshify 2 and love it.  Roomy, has a bunch of drive slots, a bit pricey compared to your selection.



    Also consider getting a lower power PSU.  Over specing the PSU for a low power system means that you are always way outside of the PSUs efficiency range, which peaks around to 50%.

    Other than that, your part list looks good.

    You're cheating by posting a picture before everything is hooked up....I tried my damndest, but I can never get cables pretty the way I want.
    Jellyfin 10.10.7 LSIO Docker | Ubuntu 24.04 LTS | i7-13700K | Arc A380 6 GB | 64 GB RAM | 79 TB Storage

    [Image: AIL4fc84QG6uSnTDEZiCCtosg7uAA8x9j1myFaFs...qL0Q=w2400]
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #9
    2024-05-28, 07:39 PM
    (2024-05-28, 06:41 PM)bitmap Wrote:
    (2024-05-28, 05:17 PM)TheDreadPirate Wrote: I have the Fractal Meshify 2 and love it.  Roomy, has a bunch of drive slots, a bit pricey compared to your selection.



    Also consider getting a lower power PSU.  Over specing the PSU for a low power system means that you are always way outside of the PSUs efficiency range, which peaks around to 50%.

    Other than that, your part list looks good.

    You're cheating by posting a picture before everything is hooked up....I tried my damndest, but I can never get cables pretty the way I want.

    I thought I had more SATA cables, but I cleaned out my bin-o-cables during COVID lockdown.  So it is an ugly mish-mash of SATA cables I had remaining.  And my cheap-ish power supply ran out of SATA power connectors so I had to use a bunch of splitters to hookup all the drives.

    It's not pretty, so you get the pre-cabling pic instead.   Moai
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    1
    remb0
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Mar
    Reputation: 0
    #10
    2024-05-31, 12:51 PM
    I have a nas and now I'm running proxmox on NUC with jellyfin in a lxc.
    I'm searching about buying the cheapest mini pc that is able to transcode as much als possible for at least 2 streams.

    anyone a good advice?
