    Jellyfin Forum Support Troubleshooting HDR Tone Mappng Over Satureated

    Pages (2): 1 2 Next »


    • 0 Vote(s) - 0 Average

    HDR Tone Mappng Over Satureated

    HDR Tone Mapping over saturated on unsupported devices
    Psychic
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Apr
    Reputation: 0
    #1
    2024-04-08, 04:12 AM (This post was last modified: 2024-04-09, 03:43 AM by Psychic. Edited 4 times in total.)
    Specs
    OS-TrueNas Scale (Jellyfin deployed natively)
    CPU- 12700k (using iGPU)
    RAM- 32GB DDR4
    Mobo- ASRock B760M Pro RS/D4
    Storage- Installed on 250 NVME SSD

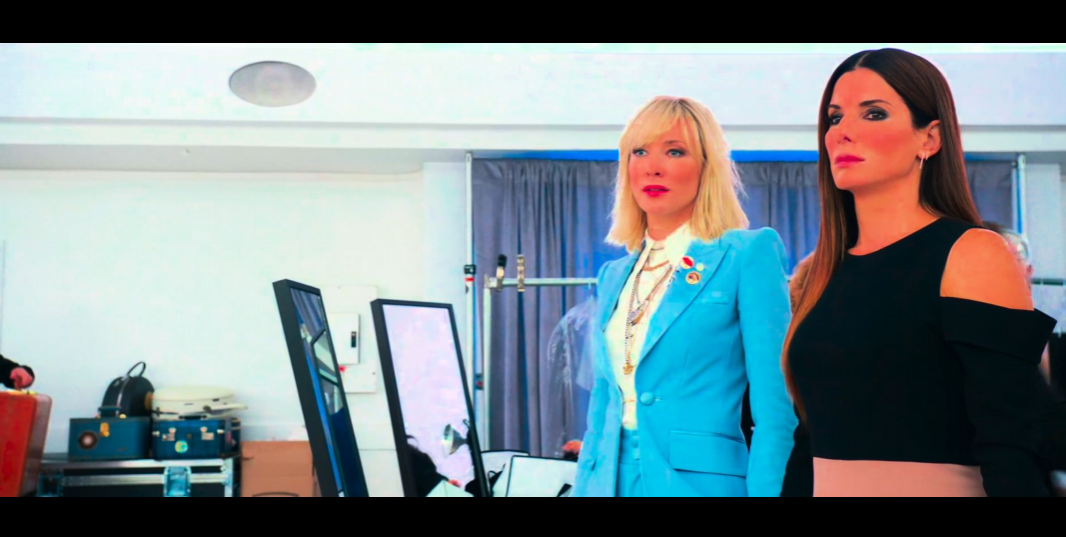

    Essentially, as the title says I've tried a variety of settings to alleviate the issue, but I can't seem to find a fix, all my HDR content videos are overly saturated, I've tried just trying to specify my acquisitions to avoid HDR, but sometimes they slip through so i suppose its time for me to find a fix.


    Seems like the half of my post is in black that's weird here's what it says

    "
    Mobo- /DASRock B760M Pro RS/D4
    Storage- Installed on 250 NVME SSD


    Essentially, as the title says I've tried a variety of settings to alleviate the issue, but I can't seem to find a fix, all my HDR content videos are overly saturated, I've tried just trying to specify my acquisitions to avoid HDR, but sometimes they slip through so i suppose its time for me to find a fix.

    "

    Logs
    https://filetransfer.io/data-package/xuE1fCl0#link


    Attached Files Thumbnail(s)

    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #2
    2024-04-08, 12:40 PM

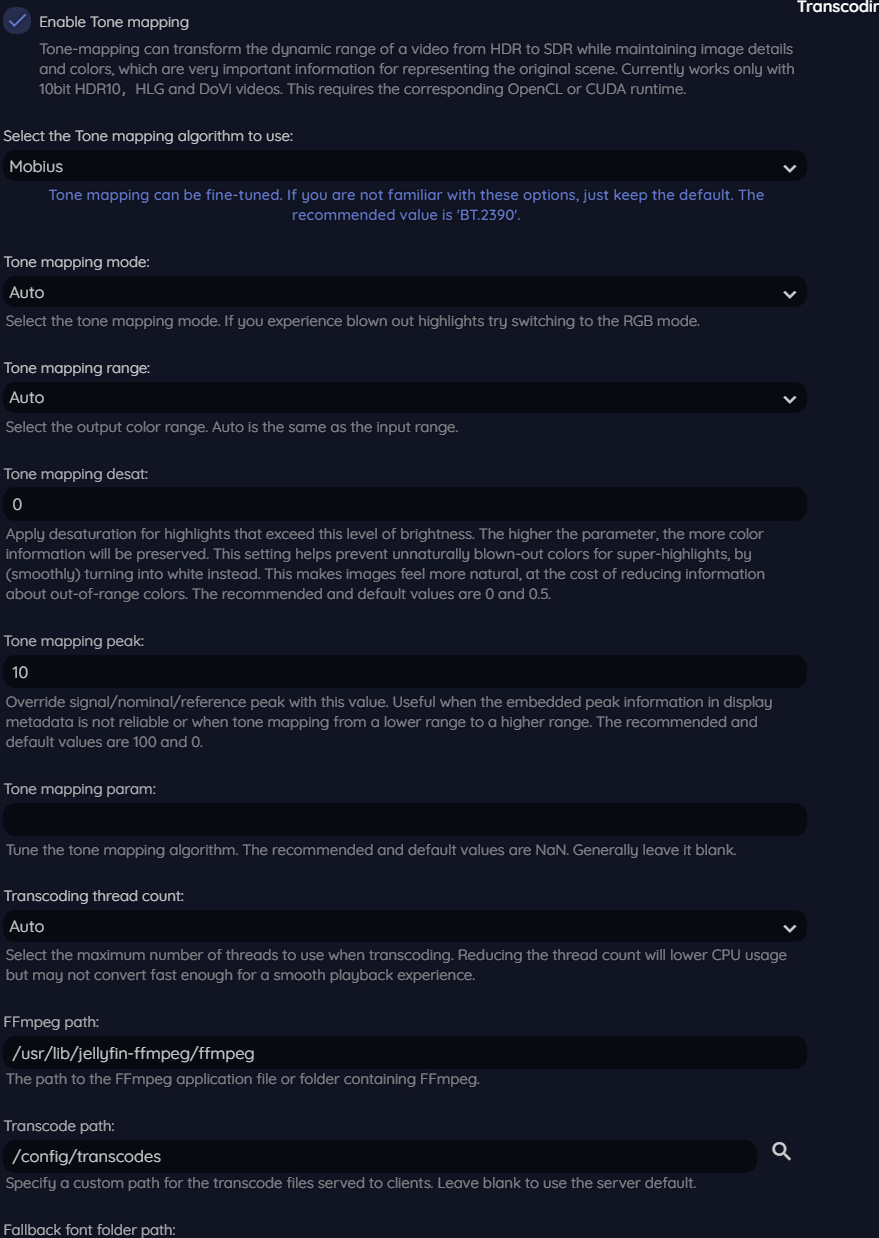

    Looks like you fiddled around with the settings a lot. Did you have this problem with the defaults?

    In particular, the tone mapping algorithm set to BT2390 and the tone mapping peak set to 100. Pretty sure the tone mapping peak set to 10 is a significant contributor to this.
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    nyanmisaka
    Offline

    Team Member

    Posts: 246
    Threads: 0
    Joined: 2023 Jun
    Reputation: 9
    #3
    2024-04-08, 01:45 PM

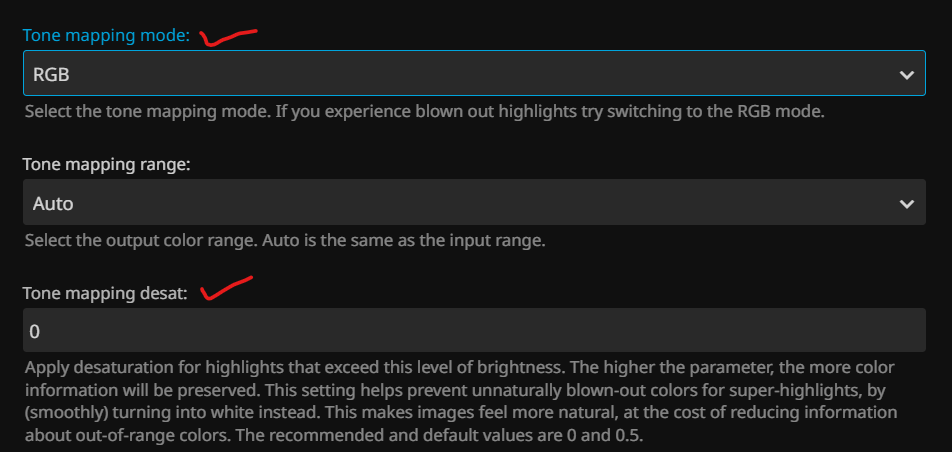

    There are two methods to de-satureate tonemapped video.


    Psychic
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Apr
    Reputation: 0
    #4
    2024-04-09, 03:41 AM (This post was last modified: 2024-04-09, 03:43 AM by Psychic.)
    (2024-04-08, 12:40 PM)TheDreadPirate Wrote: Looks like you fiddled around with the settings a lot.  Did you have this problem with the defaults?

    In particular, the tone mapping algorithm set to BT2390 and the tone mapping peak set to 100.  Pretty sure the tone mapping peak set to 10 is a significant contributor to this.

    so at default, it was oversaturated and from there I was just playing with it trying to best come up with the proper settings to fix it, unless I suck at googling I wasn't able to find much information on how to fix this. granted I am fairly new at dealing with this particular problem

    (2024-04-08, 01:45 PM)nyanmisaka Wrote: There are two methods to de-satureate tonemapped video.

    I played with those two settings, but they never came out right
    nyanmisaka
    Offline

    Team Member

    Posts: 246
    Threads: 0
    Joined: 2023 Jun
    Reputation: 9
    #5
    2024-04-09, 05:20 AM
    I see you enabled Intel VPP tone-mapping, this option is based on Intel fixed-function hardware, so it does not apply to the de-satureate options. Can you uncheck it and try again?
    Psychic
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Apr
    Reputation: 0
    #6
    2024-04-09, 09:03 AM (This post was last modified: 2024-04-09, 11:14 AM by Psychic. Edited 2 times in total.)
    (2024-04-09, 05:20 AM)nyanmisaka Wrote: I see you enabled Intel VPP tone-mapping, this option is based on Intel fixed-function hardware, so it does not apply to the de-satureate options. Can you uncheck it and try again?


    WOW lol I don't even remember clicking that, I'm on truenas scale so I assumed that was default and didn't think to check it, so its not as red anymore but its still noticeable and very polarizing, what can I do to now to dial it in ?

    edit--- after additional testing, VP didn't seem to make as much of a difference if any as I thought
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #7
    2024-04-09, 03:38 PM
    What kernel is your system running?
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    Psychic
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Apr
    Reputation: 0
    #8
    2024-04-09, 04:51 PM
    (2024-04-09, 03:38 PM)TheDreadPirate Wrote: What kernel is your system running?

    6.6
    TheDreadPirate
    Offline

    Community Moderator

    Posts: 15,374
    Threads: 10
    Joined: 2023 Jun
    Reputation: 460
    Country:United States
    #9
    2024-04-09, 06:57 PM
    Are you using jellyfin-ffmpeg or vanilla ffmpeg?
    Jellyfin 10.10.7 (Docker)
    Ubuntu 24.04.2 LTS w/HWE
    Intel i3 12100
    Intel Arc A380
    OS drive - SK Hynix P41 1TB
    Storage
        4x WD Red Pro 6TB CMR in RAIDZ1
    [Image: GitHub%20Sponsors-grey?logo=github]
    Psychic
    Offline

    Junior Member

    Posts: 7
    Threads: 2
    Joined: 2024 Apr
    Reputation: 0
    #10
    2024-04-09, 07:03 PM
    (2024-04-09, 06:57 PM)TheDreadPirate Wrote: Are you using jellyfin-ffmpeg or vanilla ffmpeg?

    I belive this is vanilla, I have made any adjustments to jellyfin outside of the UI
